CABLE SPECIFICATION
| Product name/specification | Very thin coaxial line specification | |||||||||
| Temperature & Voltage | 80℃ 30V | |||||||||
| Printing | Legend | |||||||||
| \ |
 |
|||||||||

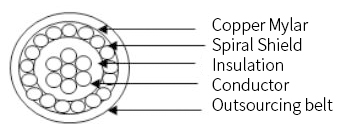

| CONSTRUCTION | ||||||||||
| CONDUCTOR | MATERIAL | Silver Plated Copper alloy | Tinnted/Silver Plated Copper alloy | Tinnted Copper | ||||||
| SIZE | AWG46 | AWG44 | AWG42 | AWG40 | AWG36 | |||||
|
CON- STRUCTION（mm） |
7/0.016 | 7/0.020 | 7/0.025 | 7/0.03 | 7/0.05 | |||||
| NOM.OD.（mm） | 0.048 | 0.060 | 0.075 | 0.09 | 0.15 | |||||
| INSULATION | MATERIAL | PFA | PFA | PFA | PFA | FEP | PFA | |||
| O.D.（mm） | 0.12 | 0.16 | 0.20 | 0.24 | 0.22 | 0.205 | 0.40 | 0.27 | ||
| NOM.AVERAGE THICKNESS（mm） | 0.04 | 0.050 | 0.062 | 0.075 | 0.065 | 0.057 | 0.125 | 0.06 | ||
| COLOR | According to customer requirements | According to customer requirements | ||||||||
| Spiral Shield | MATERIAL | Silver Plated copper alloy | Tinnted/Silver Plated Copper alloy | |||||||
|
CON- STRUCTION（mm） |
0.025 | 0.03 | ||||||||
| Cu-Mylar Shield | MATERIAL | -- | Copper Mylar | |||||||
|
CON- STRUCTION |
-- | Wrapping | ||||||||
| JACKET | MATERIAL | PFA | Polyester Tape | |||||||
|
CON- STRUCTION |
-- | Wrapping | ||||||||
| O.D.（mm） | 0.23 | 0.26 | 0.32 | 0.35 | 0.33 | 0.31 | 0.50 | 0.36 | ||
| COLOR | According to customer requirements | According to customer requirements | ||||||||
| ELECTRICAL CHARACTERISTCS | Conductor Resistance （20℃）Ω/km | ≦19360 | ≦11500 | ≦7500 | ≦5000 | ≦1500 | ||||
| Insulation Resistance MΩ.km | Min.1000 | Min.1000 | ||||||||
| Withstand Voltage Test | 500V（AC）/min | 500V（AC）/min | ||||||||
| Characteristic Impedance TDR（Ω） | 50 | 50 | 45 | 42.5 | 50 | -- | ||||
| Spark Test | 1.5KV | 1.5KV | ||||||||
